pullmanproject Cast Resin Detail Parts

5/20/2018 update

Upgrade your Branchline/Atlas heavyweight Pullmans with new Garland vent and A/C access hatch castings.....

.....cast resin parts from 3D printed patterns.....

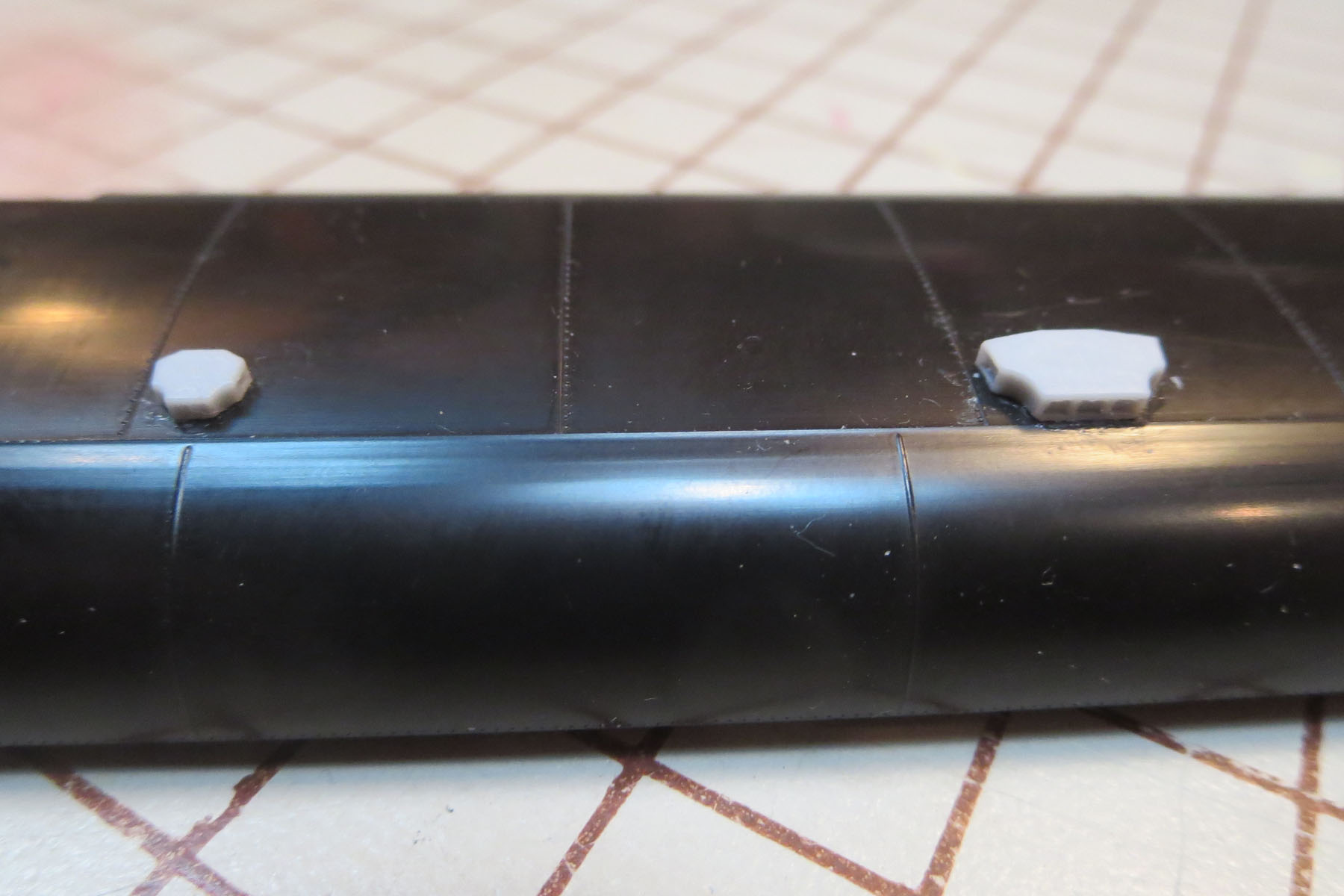

.....both large and small flush Garland vents.

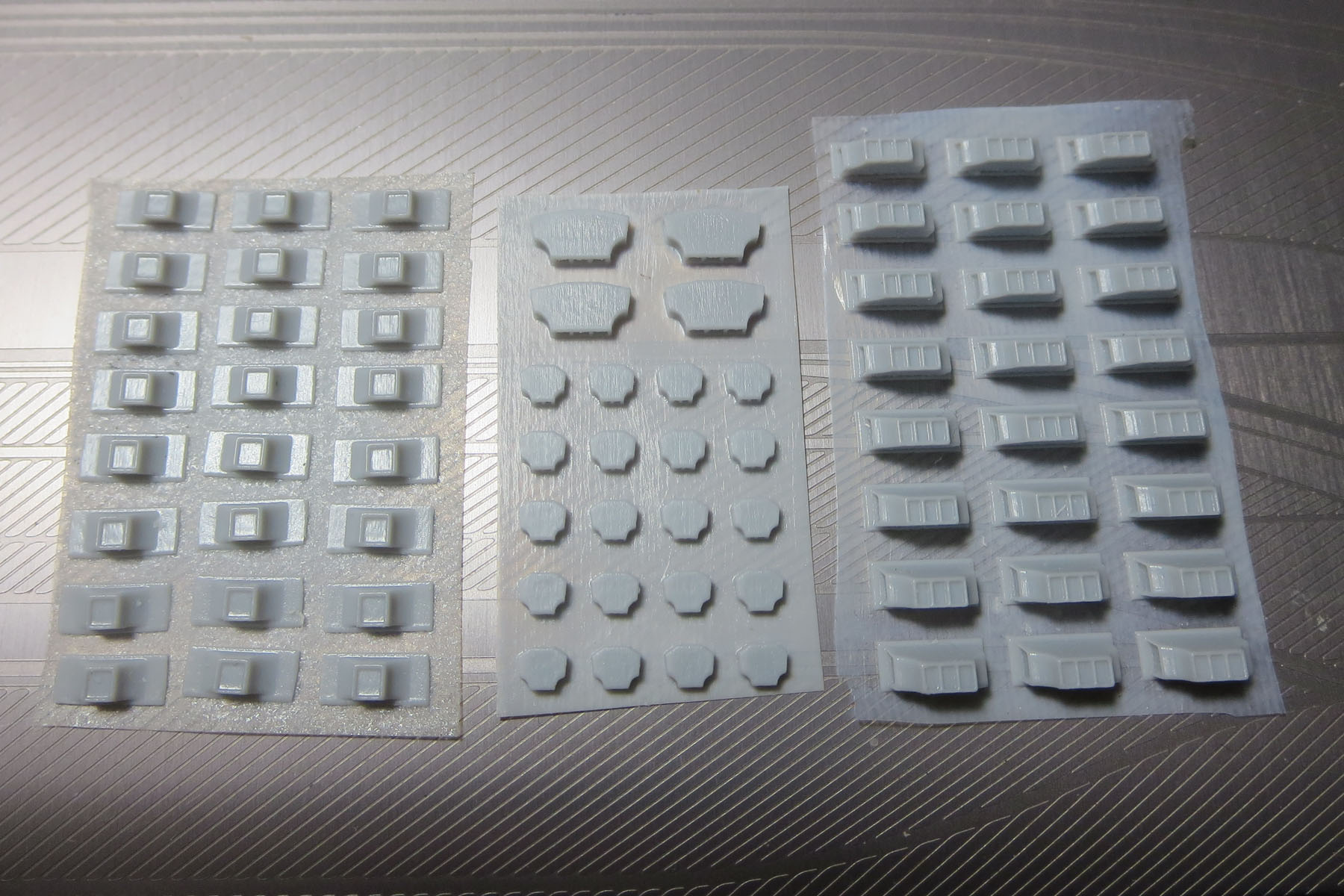

Triple (exhaust) and single (intake) Garland vents for mounting on clerestory sidewalls.....

.....correctly sized.

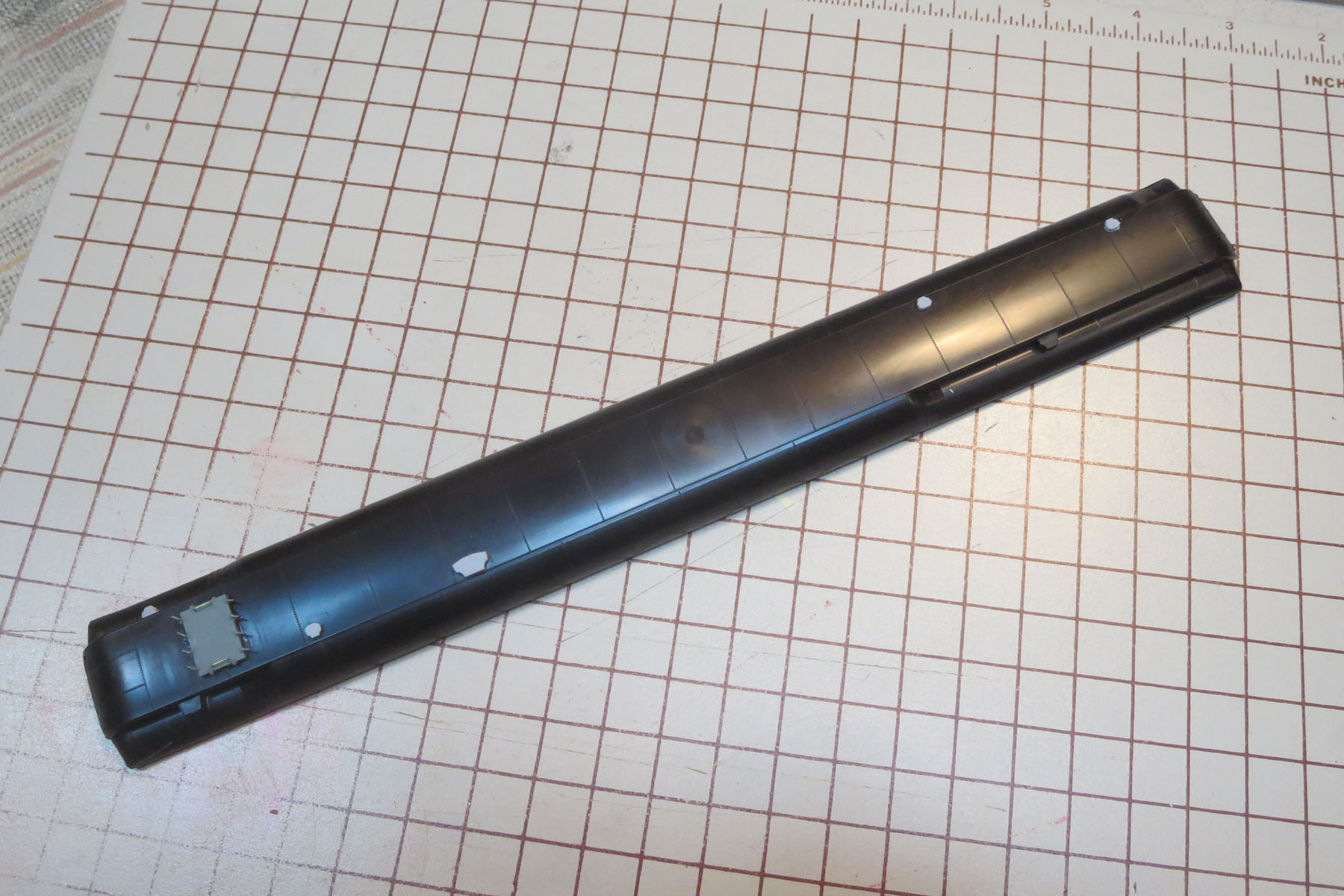

Used with our non-AC replacement resin roof you can now make as-built versions of all Branchline/Atlas heavyweight Pullmans. (Many un-air conditioned Pullmans had simple screened openings for intakes rather than single Garlands.)

Vents available in sheets of 24.

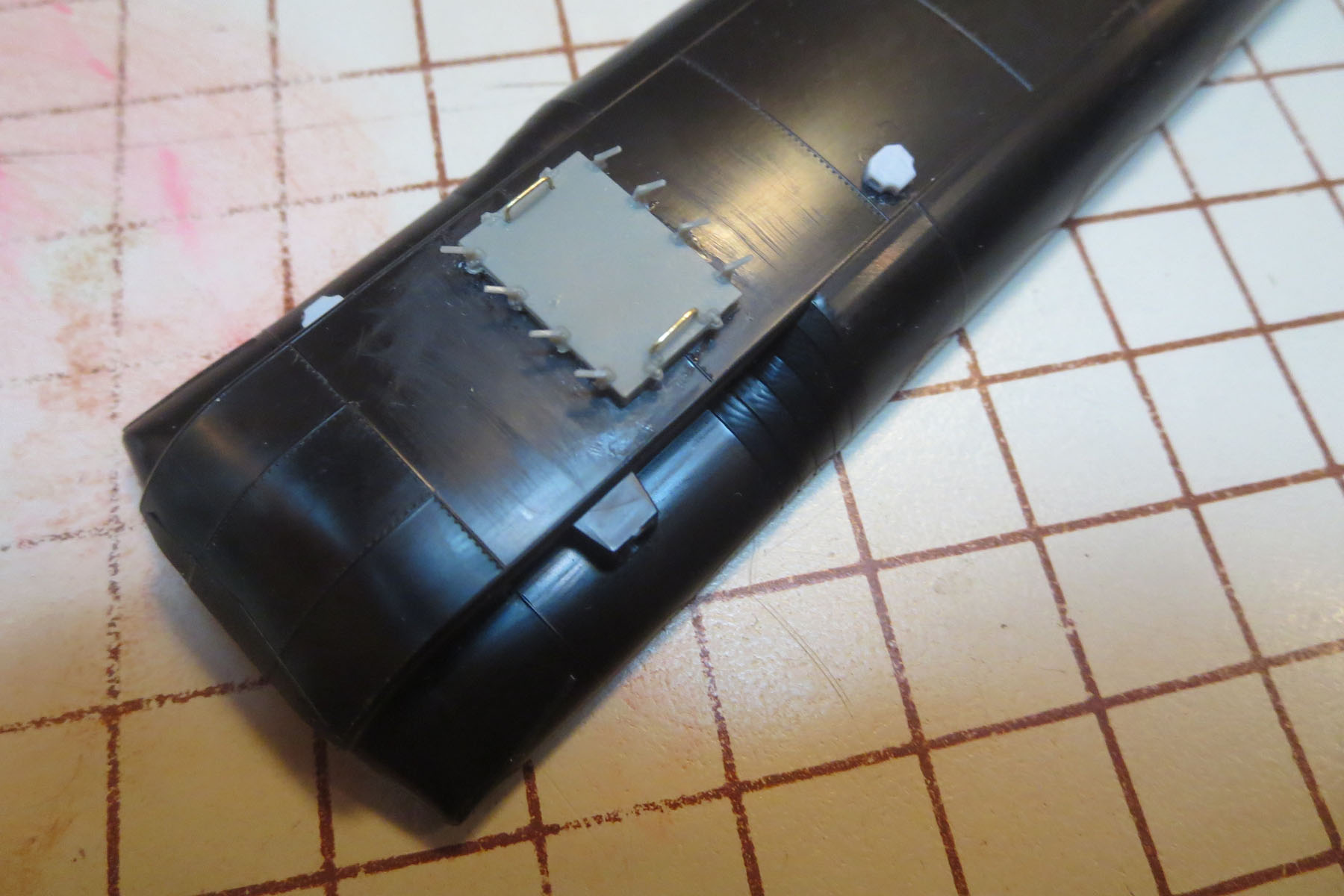

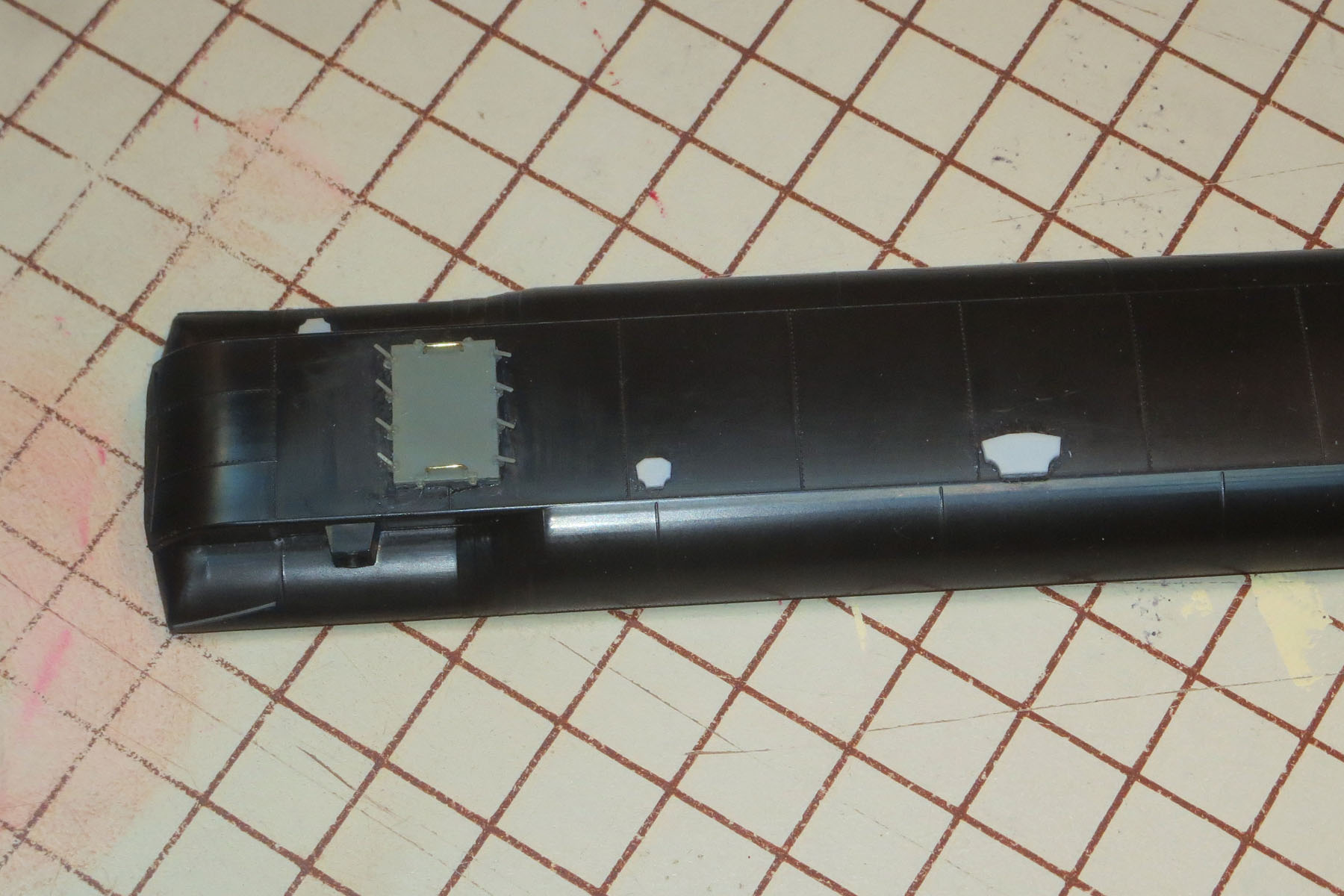

Rectangular air conditioner access hatches.....

.....complete with clamp handles, made from a tough and durable flex resin. Castings have pilot holes for lifting grabs but you have to provide and bend the wire. 0.010" or 0.012" (my preference) recommended.

These parts are made in batches of a few dozen at a time, and although they are always "in production", availability can be sporadic. Right now I have several dozen of everything.

To order, send an email to pullmanboss@yahoo.com to check on availability.

Prices:

Non-AC resin roof $10.00

Rectangular AC access hatch (set of 2) $6.00

Triple (exhaust) Garland vents (sheet of 24) $5.00

Single (intake) Garland vents (sheet of 24) $5.00

Flush Garland vents (sheet of 20 small & 4 large) $5.00

Shipping:

Orders including roofs $4.00

Orders that don't include roofs $3.00

Thanks,

Tom Madden
